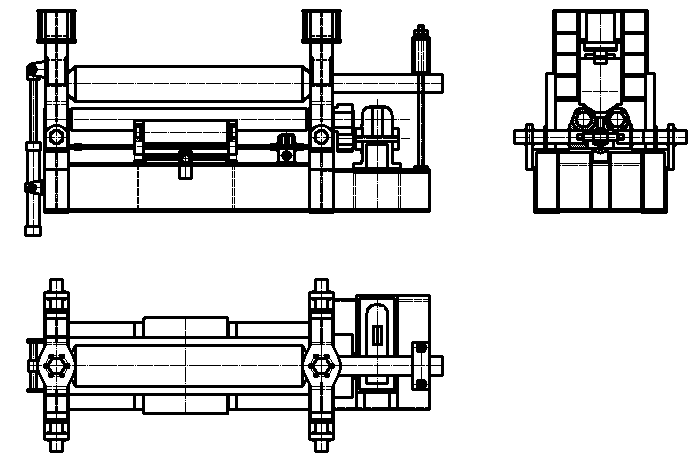

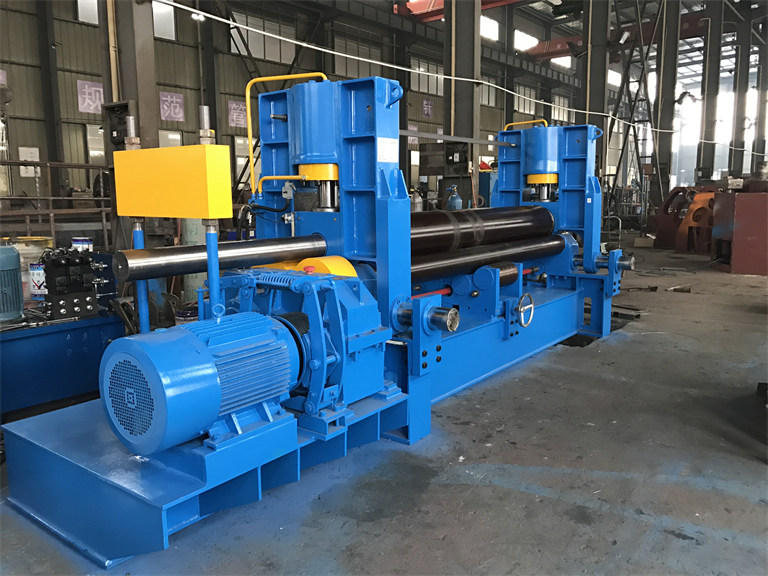

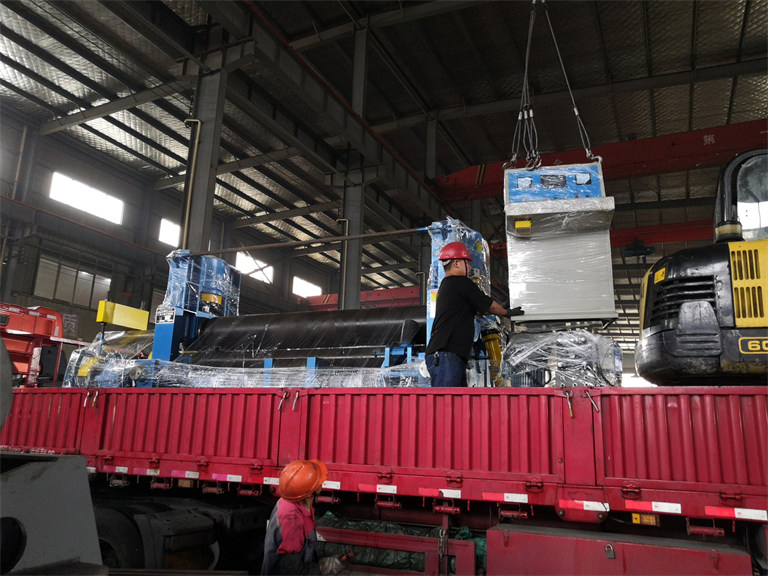

1 set of 3-roller Hydraulic Plate Rolling Machine W11S-25×2500 ship to Nigeria. It is upper roller universal plate rolling machine. It is used for rolling the certain plates into the form of drum and arc. The working principle is to curve and roll. The upper roller can move horizontally and vertically so the auxiliary equipments are not needed. It can finish the pre-bending and curvature forming of the two ends. The machines are widely used in the industries of petroleum, chemical, cement, shipyard, boiling, aviation, water conservation and keywords electricity transmission tower.

●High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.

●Numerical control, high producing efficiency, simple operation.

●Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

●Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.

●Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.

●Different use has different control way, like top numerical control and below numerical control.

●Bend “O” “U” “R” types.

First step: Plate feeding

Second step: The upper roller moves to X position, moves lower to Y1

Second step: The upper roller moves to X position, moves lower to Y1

Second step: The upper roller moves to X position, moves lower to Y1

The fifth step: Stops at the end of the plate, the upper roller presses to the position Y3. Then presses to the top directly for pre-bending.

The sixth step: The upper roller moves to Y2-α, then horizontally moves to +X position. Then the lower roller moves clock wisely.

The seventh step: To the end of the plate, the upper roller presses to the position Y3, directly pre-bend for the end of the plate

If there is any inquiry about Upper Roller Universal Plate Rolling Machine, please feel free to give us a call at +86-18951166013 or email us by sales@tiptopmfg.comfor a formal quote and talk to LETIPTOP expert to get the support.
