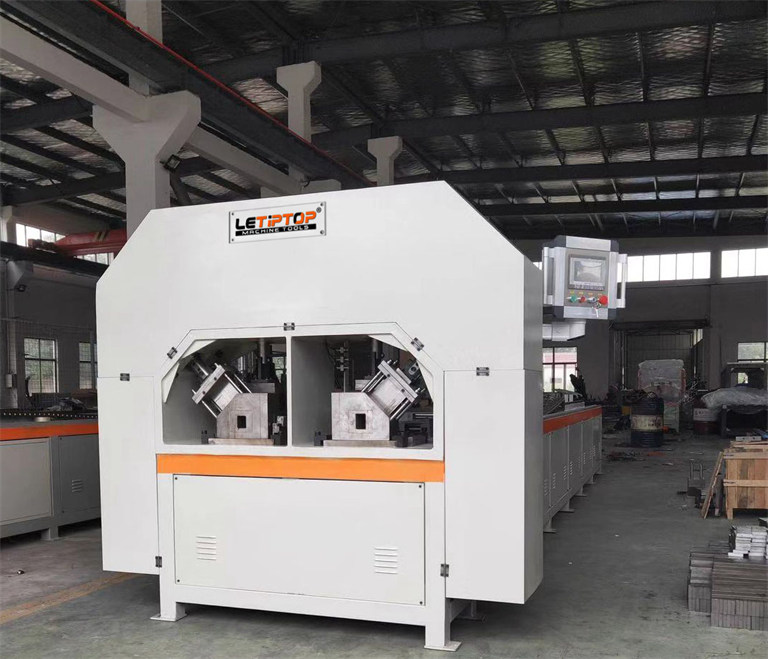

In order to process the tube more efficiently, we have designed the CNC Hydraulic Tube Punching and Cutting Machine, which can be cut the tube directly after the tube punching. The machine is equipped with servo feeding system to ensure higher precision. The accuracy of tube punching and cutting up to 0.15mm.

●Material: all kinds of steel, aluminum, copper, stainless steel, etc.

●Profile steel type: round tube, square tube, rectangular tube, elliptical tube, and other profiles.

●Hydraulic-driven type tube punching and cutting machine.

●Automatic feeding, clamping, punching and cutting.

●It is able to punch Hole Size and Shape can punch on tube.

●Hole space, feeding length, cutting length and holes punching quantity can programming by touch screen controller.

●The servo motor is precisely operated to ensure the accuracy of punching and cutting.

●Back Pulling System: To pull the tube from the other side by the Pulling servo motor for punching the last hole which is too close to the tube end(Option).

●Taiwan KH2 gear rack by high-frequency grinding and heat treatment.

●The tank chain is more durable which used to precisely drive the steel plate.

●SHK-51 high-speed steel moulds.

●The hardness of the molds up to 53HR.

●50,000 times for non-destructive punching and cutting. More than 300,000 for punching and cutting life.

We are specialized in the manufacturing of Pipe, Tube, Channel, Beam punching machines. If there is any model be of interest to you, please feel free to give us a call at +86-18951166013 or email us at sales@tiptopmfg.comfor a formal quote on the CNC Hydraulic Tube Punching and Cutting Machine and talk to LETIPTOP expert to get the support.
